Dingli introduces large electric RTs

By Euan Youdale21 June 2021

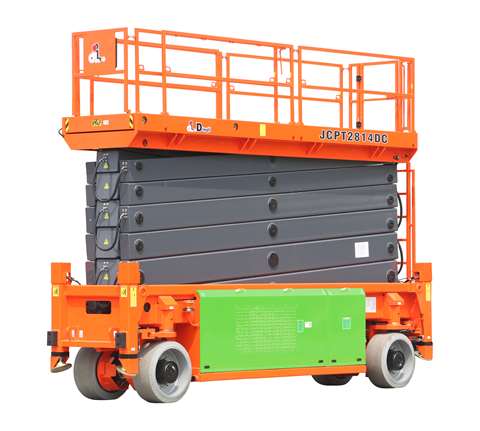

Dingli JCPT2814DC RT scissor Dingli JCPT2814DC RT scissor

Dingli has launched two large compact electric rough terrain scissor lifts to top its range.

The 28m and 32m working height JCPT2814DC and JCPT3214DC models are equipped with 80V/520Ah high capacity Lithium battery pack.

Another key feature is their narrow width, of 1.39m, making them suitable for a range of indoor and outdoor work that cannot be reached by more traditional large rough terrain scissor lifts.

Both models provide a maximum load capacity of 600kg for two workers and can drive at full height, and are equipped with four wheel direct electric drive, as well as U-turn and crab steering. Gradeability is 25% and maximum working slope level 1%.

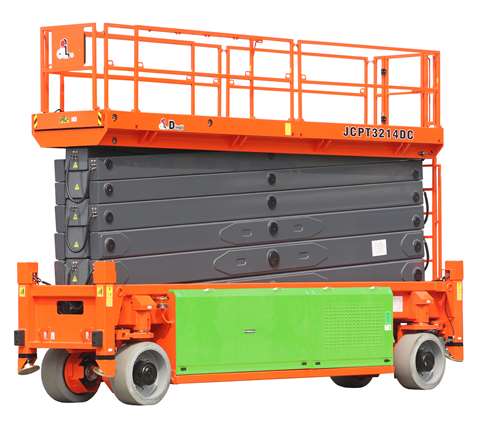

Dingli JCPT3214DC The 32m working height JCPT3214DC from Dingli.

In addition, there is a 1.9m extension platform on both models; while the JCPT2814DC has a 5.08m platform length and the JCPT3214DC has a 5.85m platform length.

Overall length of the JCPT2814DC is 5.69m, while the JCPT3214DC. The weight of the larger machine amounts to 22,200kg, and the JCPT2814DC weighs in at 18,060kg.
