After the fire

A serious fire brokeout in the tunnel of the Newhall Pass on Interstate 5 in California, some 30 miles west of Los Angeles, following a multi-vehicle accident, which in the endinvolved a total of more than 30 vehicles Flames, whipped up by winds engulfed the full length of the tunnel, which carried southbound traffic only. Temperatures running as high as 1,400°C (2,550°C resulted in portions of the surfaces of the reinforced concrete 183 m (600 ft) long two lane tunnel being damaged and splitting.

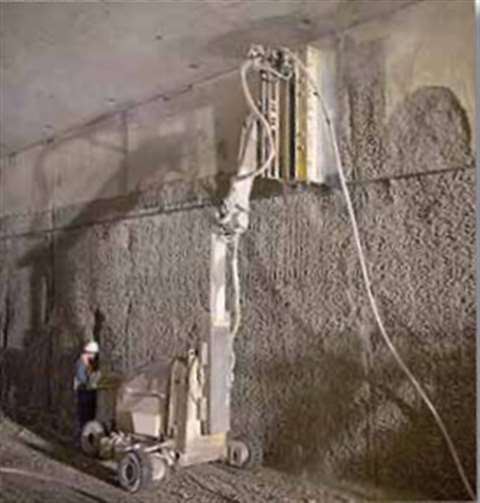

US specialist hydrodemolition contractor and rental operation HydroPressure Cleaning Inc, was on the scene early after the fires had died out and the necessary repairs were assessed. Initially, the company used a Conjet 322 robot, operating under a range of water pressures to remove concrete in patches along the length of the tunnel to allow engineers to assess the scale of the problem.

Once this assessment was complete, the California Department of Transport (CalTrans) opted to remove a surface layer of concrete from the entire area of both tunnel walls covering an area of 2,803 m² (30,180 ft²), as well as an additional 242 m² (2,600 ft²) on the wing walls. Depths varied from 25-312 mm (0.5-1.25 in) on undamaged areas to a maximum of 150 mm (6in) on damaged areas

HPC eventually also brought a larger Conjet 363 unit that was capable of processing 68 m²/h (730 ft²/h). In the initial emergency repair contract with contractor Chumo, the company removed some 595 m² (6,400 ft²). During the subsequent concrete replacement contract, which was supervised by contractor Security Paving, HPC had around 2,452 m² (26,400 ft²) of surface preparation and concrete removal to carry out. This it achieved by working two 12 hours shifts in just four days.
